Sutorbilt Blowers

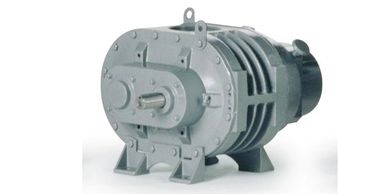

Sutorbilt Legend


Sutorbilt Legend Series are available with grease/oil lubrication and dual splash lubrication (DSL).   Legend Blowers feature a cast iron casing with dynamically balanced bi-lobe impellers.    Mechanical seals are available for gas applications.



Performance Data

Flow Range:  168-3015 CFM

Pressure:   0-15 PSI

Vacuum:  0-16" Hg


Available in 20+ different models

(Low Pressure, Medium Pressure/High Pressure):


  • 2L/2M/2H
  • 3L/3M/3H
  • 4L/4M/4H
  • 5L/5M/5H
  • 6L/6M/6H
  • 7L/7M/7P
  • 8L/8M/8P


Legend Brochure

Sutorbilt 4500


Sutorbilt 4500 Series  permits higher speeds, performance ratings and is rated for continuous duty in all industrial applications. 4500 Series feature ductile iron  bi-lobe impellers equipped with one-piece alloy steel shafts.  Mechanical gas seal are available for gas applications.


Performance Data

Flow Range:  396-3953 CFM

Pressure:   0-15 PSI

Vacuum:  0-16" Hg


Available in 12 different models:


  • 608-4500
  • 612-4500
  • 615-4500
  • 618-4500
  • 711-4500
  • 713-4500
  • 716-4500
  • 721-4500
  • 812-4500
  • 816-4500
  • 820-4500
  • 824-4500

4500 Brochure

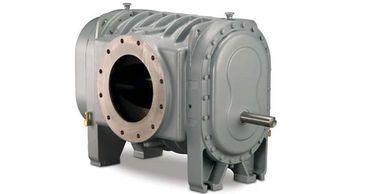

Sutorbilt 8000


Sutorbilt 8000 Series are synonymous with LARGE flow applications.  Available in 10" - 22" gear diameters.  8000 Series feature dynamically balanced impellers constructed of high-density ductile iron.  Mechanical gas seals are available for gas applictions.


Performance Data

Flow Range:  1412-16,794+ CFM

Pressure:   0-18 PSI

Vacuum:  0-16" Hg


Available in 34+ different models:


  • 1008, 1011, 1013, 1016, 1018, 1021, 1024, 1030
  • 1213, 1216, 1218, 1220, 1223, 1226, 1230, 1236
  • 1415, 1419, 1421, 1423, 1426, 1431, 1437, 1442
  • 1617, 1623, 1626, 1630, 1636, 1640, 1643, 1648
  • 1818, 1821, 1824, 1830, 1833, 1836, 1842, 1845, 1848, 1854
  • 2224, 2231, 2236, 2242, 2248, 2254, 2260, 2266

8000 Brochure
