Duroflow Blowers

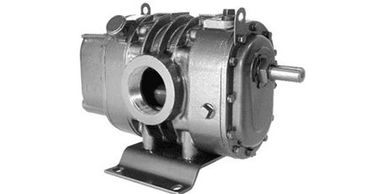

Duroflow 3000


Duroflow 3000 Series are designed for heavy duty operation and feature dual splash lubricagtion as standard.  The housing and rotor are cast ductile iron for optimum performance and heat dispersion.


Performance Data

Flow Range:  94-231 CFM

Pressure:   0-15 PSI

Vacuum:  0-15" Hg


Available in 2 different models and four different configurations each


VT = Vertical top shaft

VB = Vertical Bottom Shaft

HR =  Horizontal Right Shaft

HL = Horizontal Left Shaft


  • 3004-VT
  • 3004-VB
  • 3004-HL
  • 3004-HR
  • 3006-VT
  • 3006-VB
  • 3006-HL
  • 3006-HR

Duroflow Brochure

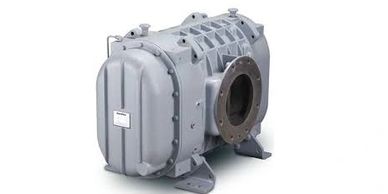

Duroflow 4500


Duroflow 4500 Series are designed for heavy duty operation and feature dual splash lubricagtion as standard.  The housing and rotor are cast ductile iron for optimum performance and heat dispersion.


Performance Data

Flow Range:  137-1875 CFM

Pressure:   0-15 PSI

Vacuum:  0-16" Hg


Available in 5 different models and four different configurations each


VT = Vertical top shaft

VB = Vertical Bottom Shaft

HR =  Horizontal Right Shaft

HL = Horizontal Left Shaft


  • 4504 (VT/VB/HR/HL)
  • 4506 (VT/VB/HR/HL)
  • 4509 (VT/VB/HR/HL)
  • 4512  (VT/VB/HR/HL)
  • 4818 (VT/VB/HR/HL)

Duroflow Brochure

Duroflow 7000


Duroflow 7000 Series are designed for heavy duty operation and feature dual  splash lubricagtion as standard.  The housing and rotor are cast ductile  iron for optimum performance and heat dispersion.


Performance Data

Flow Range:  622-4282 CFM

Pressure:   0-15 PSI

Vacuum:  0-16" Hg


Available in 6 different models and four different configurations each


VT = Vertical top shaft

VB = Vertical Bottom Shaft

HR =  Horizontal Right Shaft

HL = Horizontal Left Shaft


  • 7009 (VT/VB/HR/HL)
  • 7012 (VT/VB/HR/HL)
  • 7015 (VT/VB/HR/HL)
  • 7018  (VT/VB/HR/HL)
  • 7023 (VT/VB/HR/HL)
  • 7028 (VT/VB/HR/HL)

Duroflow Brochure
